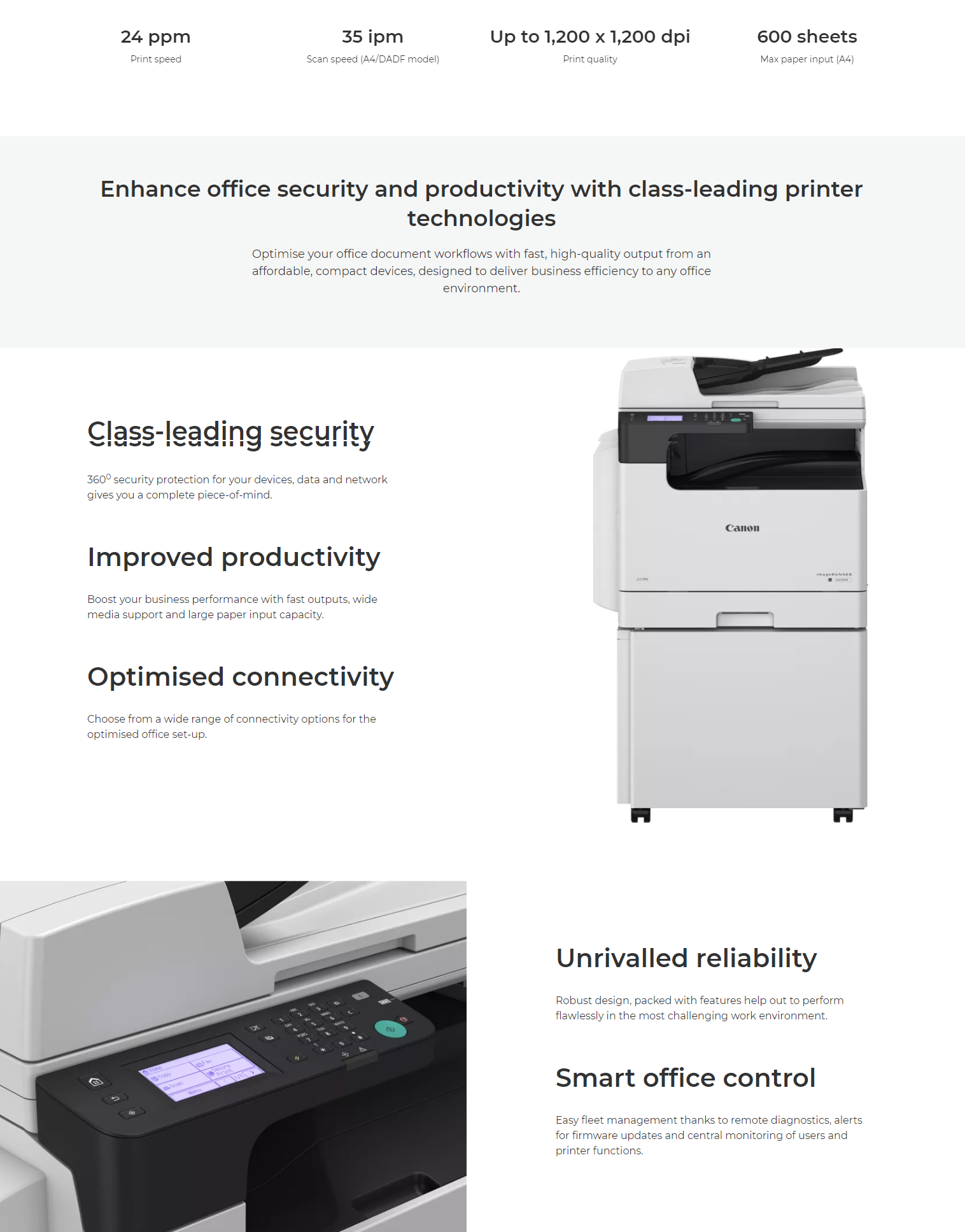

Canon ImageRUNNER IR-2224 Print, Copy, Scan, Send, Fax, Multifunctional Laser Printer (ImageRUNNER 2224)
Machine Type : A3 Monochrome Laser Multifunctional
Memory : 1.0GB RAM
Storage : 2GB eMMC
Finishing Capabilities : Collate, Group
Processor Speed : 1.6GHz Dual Core Processor
Interface Connection : Standard: USB 2.0 (Device) x1;
Core Functions : Print, Copy, Scan, Send and Fax
Control Panel : 8.9 cm/3.5 inch monochrome Touch panel
Paper Supply Capacity (A4, 80 gsm) : Standard: 350 sheets; Maximum: 600 sheets (with Cassette Feeding Module-AK1);
Paper Output Capacity (A4, 80 gsm) : Standard: 250 sheets; Maximum: 250 sheets
Description
The Canon imageRUNNER IR-2224 is a reliable A3 monochrome multifunction copier designed for small to medium-sized offices that require consistent document handling and efficient workflow management. It combines printing, copying, and scanning functions in a compact design while delivering print speeds of up to 24 pages per minute for A4 documents. The machine features a 3.5-inch monochrome touch panel that provides simple navigation and easy operation for daily office tasks. With support for multiple paper sizes including A3, A4, and custom formats, it is suitable for handling reports, invoices, contracts, and business documents with professional quality output. The IR-2224 also supports high print resolutions up to 1200 x 1200 dpi, producing sharp text and clean graphics. Its energy-efficient design helps reduce power consumption while maintaining stable performance during long workloads. Optional network connectivity and wireless support make document sharing and office integration easier for businesses looking for a dependable and cost-effective multifunction printer solution.
Specifications
General Information | |
|---|---|
Brand | Canon |
Model | imageRUNNER 2224 |
Color | White |
Main Unit | |
|---|---|
Machine Type | A3 Monochrome Laser Multifunctional |
Core Functions | Print, Copy, Scan, Send, and Fax |
Processor Speed | 1.6GHz Dual Core Processor |
Control Panel | 8.9 cm/3.5 inch monochrome Touch panel |
Memory | Standard: 1.0GB RAM |
Storage | Standard: 2GB eMMC |
Interface Connection | Standard: USB 2.0 (Device) x1 |
Paper Supply Capacity (A4, 80 gsm) | Standard: 350 sheets |
Maximum: 600 sheets (with Cassette Feeding Module-AK1) | |
Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets |
Maximum: 250 sheets | |
Finishing Capabilities | Collate, Group |
Supported Media Types | Multi-purpose Tray: Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, Envelope |
Paper Cassette: Plain, Recycled, Color, Pre-punched | |
Supported Media Sizes | Multi-purpose Tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5), Custom size Min. 95.0 x 148.0mm up to 297.0 x 431.8mm |
Paper Cassette: Standard size - A3, A4, A4R, A5R, B4, B5, B5R | |
Supported Media Weights | Multi-purpose tray: 60 to 157 gsm |
Paper Cassettes: 64 to 90 gsm | |
Warm-up Time | From Power On: 13 Seconds or Less* |
Quick start mode: N/A | |
From Sleep Mode: 4.3 Seconds or Less | |
Dimensions (W x D x H) | 627 x 589 x 502 mm |
Installation Space (W x D) | 1065 x 1285 mm |
Weight | Approx. 32.3 kg including toner |
Print Specifications | |
|---|---|
Print Speed | 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) |
Print Resolution (dpi) | Up to 1,200 x 1,200 |
Page Description Languages | Standard: UFRII |
Double-Sided Printing | Yes |
Print Features | Watermark, Header/Footer, Page Layout, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Print Date |
Operating Systems | UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 (As of Nov 2022) |
Copy Specifications | |
Copy Speed | 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) |
First-Copy-Out Time | Platen: Approx. 7.4 seconds or less |
Copy Resolution (dpi) | 600x 600 |
Multiple Copies | Up to 999 copies |
Copy Density | Automatic or Manual (9 Levels) |
Magnification | 25% - 400% (1% Increments) |
Scan Specifications | |
Type | Standard Platen Cover |
Pull Scan Specifications | ScanGear MF. For both TWAIN and WIA |
Acceptable Originals/Weights | Platen: Sheet, Book |
Supported Media Sizes | Platen max. scanning size: 297.0 x 432.0 mm |
Scan Method | Push Scan, Pull Scan |
Double-Sided Scanning | No |
Fax Specifications | |
Modem Speed | Standard: USB Memory |
Security Specifications | |
Authentication & Access Control | Department ID Authentication (Department ID and PIN Login, Function Level Login) |
Document Security | Print Security (Secure Print) |
Device Security | Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) |
Device Management & Auditing | Administrator Password |
Environmental Specifications | |
Operating Environment | Temperature: 10 to 30 °C (50 to 86 °F) Humidity: 20 to 80 % RH (Relative Humidity) |
Power Source | 220-240V 50/60Hz (2.8) |
Power Consumption | Maximum: Approx. 1,500 W |
Standby: Approx. 15.5 | |
Sleep mode: Approx. 0.9 W | |
Typical Electricity Consumption (TEC) | As per US Energy Star 3.0 |
Noise Levels | Sound Power Level (LWA,m): Active (1-sided): 6.7B*, Kv: 0.3B* |
Sound Pressure Level (LpAm) Bystander's position: Active (1-sided): 55 dB* | |
Software & Printer Management | |
Optimisation Tools | Canon Driver Configuration Tool |
Consumables | |
Toner Cartridge/s | Toner C-EXV 42 Black |
Toner Estimated Yield | 10,200 pages (A4) (Estimated @ 5% coverage) |
Paper Supply Options | Cassette Feeding Unit Name: Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg |
Hardware Accessories | |
Others | Plain Pedestal Type-J2 Optional pedestal to raise the device when free-standing |
Other Options | Instant Stapler-B1 |
