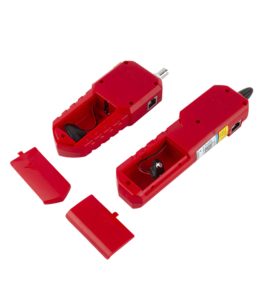

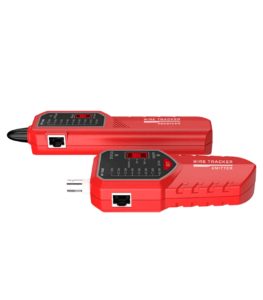

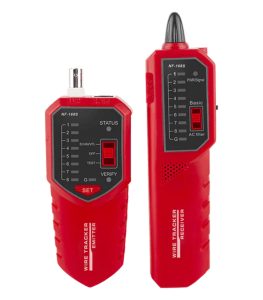

NOYAFA NF-168S Handy Wire Tracker – Red

The NOYAFA NF-168S Handy Wire Tracker is a versatile and compact tool designed for professionals in networking, telecommunications, and IT maintenance. Its primary function is to trace and test various types of cables with precision, making it an essential instrument for troubleshooting and maintenance tasks. The device comes in a striking red design, which not only makes it visually appealing but also ensures that it is easily identifiable among other tools in a technician’s kit. Unlike more complex testers, the NF-168S emphasizes portability, usability, and efficiency, offering advanced features in a handheld format suitable for fieldwork. At its core, the NF-168S supports tracing of RJ11, RJ45, and BNC cables, providing flexibility for both telephone systems, data networks, and certain audiovisual installations. This multi-cable support allows technicians to carry a single device for a wide variety of tasks, reducing the need for multiple tools and simplifying the workflow. Moreover, the device is engineered to operate effectively even in complex network environments, including PoE (Power over Ethernet) switches, which often introduce challenges for conventional cable tracers. This capability ensures that professionals can identify and trace active network connections without interrupting the service or powering down switches.

Tracing and Wire Mapping Capabilities

One of the core features of the NF-168S is its wire mapping and tone tracing functionality, specifically designed for RJ45 cables. Wire mapping allows technicians to verify that the pin configuration of a network cable is correct and that no cross-wiring, open circuits, or shorts are present. By detecting such faults early, network administrators can prevent connectivity issues that could disrupt operations in offices or data centers. Additionally, the NF-168S uses two-tone signaling to trace cable paths and identify breakage points along the line, which is critical for diagnosing damaged or misrouted cables in complex installations. The tone tracing system is highly effective in noisy electrical environments, which is common in commercial buildings or industrial areas. The device’s anti-jamming capabilities ensure that the signals remain distinct even when tracing cables connected to active network switches. This eliminates false readings and increases the accuracy of locating problem points. Unlike older wire trackers that require direct cable clips for testing, the NF-168S can perform most tracing tasks without such connections, though it does not support direct transmitter connection via cable clips. Despite this, its performance remains reliable due to robust internal circuitry and signal processing.

PoE Switch Compatibility

A standout feature of the NF-168S is its ability to scan cables on PoE switches. Power over Ethernet is a common technology in modern network infrastructure, allowing data and electrical power to be transmitted over a single cable. Many standard wire trackers struggle to operate on active PoE lines because the voltage can interfere with signal detection. The NF-168S, however, is designed to overcome this challenge, allowing technicians to trace and test live network cables safely. This functionality reduces downtime in office environments and ensures minimal disruption to critical network services while troubleshooting or maintaining the cabling infrastructure. The device achieves this by filtering out the PoE voltage interference while still sending trace tones to the cable. This makes it particularly useful for network administrators who need to locate specific connections within a patch panel or network closet. It eliminates the need to shut down network devices to perform testing, which is a significant advantage in enterprise networks where uptime is crucial. By supporting active switches, the NF-168S also enhances operational efficiency and reduces the risk of accidental disconnections during maintenance.

Tone Tracing and Breakpoint Detection

Tone tracing is one of the most practical features for on-site troubleshooting, allowing technicians to detect the path of a cable and identify breakage points along its length. The NF-168S provides two distinct tones, which can be used to differentiate between cables in close proximity. This is especially useful in environments with dense cable bundles, such as server rooms or telecom racks, where distinguishing between individual lines is challenging. The tones can also help detect intermittent faults, such as loose connectors or partially damaged insulation, which might otherwise go unnoticed during visual inspection. The tool generates audible signals through an earphone jack, allowing precise localization of faults even in noisy environments. Additionally, volume adjustment ensures that the user can optimize the sound level for different settings, whether in a quiet office or a loud industrial area. The ability to pinpoint the exact location of a break or fault significantly reduces the time required for repairs, leading to faster restoration of network or telephone service. This feature makes the NF-168S not only a tracing tool but also an effective diagnostic instrument for proactive maintenance.

Polarity and Short-Circuit Testing

In addition to tracing capabilities, the NF-168S offers polarity and shorted wire testing, which are essential for ensuring proper cable installation. Polarity testing verifies that connections are consistent and correct across both ends of a cable, which is critical for network performance and voice clarity in telephone systems. Meanwhile, short-circuit detection identifies connections that are unintentionally bridged, preventing potential damage to connected devices and avoiding data transmission errors. Together, these tests help technicians maintain high-quality network infrastructure and minimize potential disruptions. This feature is particularly important for RJ45 network cables used in structured cabling systems. Incorrect wiring or shorts can cause intermittent connectivity issues, packet loss, and network instability. By using the NF-168S to perform these tests before deploying a network, technicians can ensure that installations meet industry standards and reduce the risk of future failures. The device’s visual indicators and audible tones make it easy to interpret results quickly, even for users with limited technical experience.

Limitations in Advanced Features

While the NF-168S is highly capable, it does have some limitations compared to more advanced cable testers. For instance, it does not include a visual fault locator or support telephone condition identification such as tip or ring detection. These features are useful in more sophisticated environments where precise line condition monitoring is necessary, such as in large telecom installations. Similarly, the device cannot connect a cable clip directly to the transmitter, which some other testers use to improve trace accuracy in certain scenarios. Despite these limitations, the NF-168S remains a practical tool for most everyday network and telephone line troubleshooting tasks. Its core features—tone tracing, cable verification, PoE compatibility, and anti-jamming capability—cover the majority of field requirements. For technicians who primarily work with RJ11, RJ45, and BNC cables in office or small-to-medium enterprise environments, the NF-168S provides excellent value in a compact, portable package.

Practical Applications in Networking

The NF-168S is suitable for a wide range of professional applications. Network administrators and IT technicians can use it for routine cable maintenance, fault detection, and infrastructure expansion. For example, when adding new workstations or network devices, the device allows technicians to quickly verify cable continuity and proper wiring configuration. It also serves as a troubleshooting tool to locate damaged or misrouted cables in patch panels or conduits, reducing time spent manually tracing lines. The device’s portability means it can be carried easily between sites, making it ideal for field service engineers. In addition to IT networks, the NF-168S can be used for CCTV and audiovisual systems that utilize BNC connectors. This versatility ensures that technicians dealing with multiple types of cabling can rely on a single tool rather than juggling multiple specialized testers. Its lightweight design and user-friendly interface further enhance its practicality for both routine maintenance and emergency troubleshooting scenarios.

Ergonomics and User Interface

The NF-168S has been designed with user convenience in mind. Its compact form factor allows for one-handed operation, while the bright red color ensures that it is easily visible in toolboxes or cluttered workspaces. The device features clear labeling for all buttons and ports, which simplifies operation even for technicians who are new to cable testing. Additionally, the inclusion of an earphone jack and volume control allows for flexible usage in different environments, enabling users to hear tone signals clearly without disturbing others. The device is powered efficiently, with battery life sufficient for multiple field tasks before requiring replacement. Its rugged construction ensures that it can withstand typical wear and tear in industrial or commercial settings. The combination of ergonomics, durability, and intuitive interface makes the NF-168S a reliable companion for technicians who require a balance of portability, functionality, and ease of use.

Safety and Anti-Interference Features

Safety is a key consideration in cable testing, particularly when dealing with live network equipment. The NF-168S is designed with anti-jamming functionality that reduces the risk of erroneous readings caused by electrical interference from active network devices, such as PoE switches. This feature not only improves accuracy but also enhances safety, as technicians do not need to disconnect live equipment to perform tests. The device is engineered to operate within standard network voltages safely, minimizing the risk of damage to both the tester and connected equipment. Moreover, the device’s design prioritizes clear visual and audible feedback to prevent misinterpretation of results. While it lacks a visual fault locator, the combination of tone signals, earphone connectivity, and volume control ensures that technicians can reliably detect issues without exposing themselves to electrical hazards. This makes the NF-168S a practical, safe, and efficient tool for everyday cable testing in professional environments.
