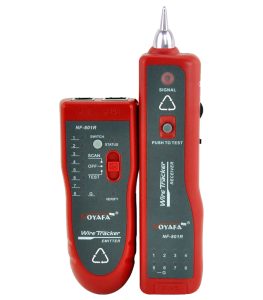

NOYAFA NF-801R Networking Wire Tracker

NOYAFA NF-801R Networking Wire Tracker

Features

The NOYAFA NF-801R Networking Wire Tracker is a professional-grade diagnostic and maintenance tool designed for technicians, installers, and engineers who work with structured cabling systems, telecommunications lines, and basic electrical wiring. Built to simplify cable identification and troubleshooting, the NF-801R combines multiple testing and tracing capabilities into a single compact device. It is especially useful in environments where cables are densely packed, unlabeled, or routed through walls, ceilings, or distribution cabinets. By supporting RJ45, RJ11, and electric wire tracing, the NF-801R serves as a versatile solution for network maintenance, telephone line inspection, and low-voltage electrical work. Its thoughtful design focuses on accuracy, efficiency, and user convenience, making it suitable for both experienced professionals and learners entering the networking or electrical field.

Design, Build Quality, and Ergonomics

The physical design of the NOYAFA NF-801R reflects its purpose as a daily-use field tool. It is compact enough to be carried easily in a toolkit or work bag, yet sturdy enough to withstand regular handling in demanding environments. The casing is typically made from durable plastic with reinforced edges to protect the internal circuitry from minor impacts. Buttons and switches are positioned for easy access, allowing one-handed operation during cable tracing or testing tasks. The inclusion of a built-in spotlight further enhances usability in dark server rooms, ceiling spaces, or poorly lit wiring closets. The earphone jack is discreetly integrated into the design, enabling users to work in noisy environments without losing signal clarity. Overall, the ergonomic layout reduces operator fatigue and improves accuracy during extended troubleshooting sessions.

Cable Tracing Capabilities and Supported Cable Types

One of the strongest features of the NOYAFA NF-801R is its cable tracing functionality across multiple cable types. It supports RJ45 Ethernet cables commonly used in LAN networks, RJ11 telephone cables used in voice communication systems, and standard electric wires found in low-voltage installations. This wide compatibility allows technicians to locate and identify specific cables among bundles without disconnecting them or disrupting network services. The tracing function works by sending a signal through the target cable, which can then be detected by the receiver probe. This makes it possible to follow cable routes behind walls, under floors, or inside conduits. The ability to trace electric wires adds extra value, as it extends the device’s usability beyond networking into basic electrical diagnostics.

RJ45 Cable Error Detection and Network Diagnostics

The NOYAFA NF-801R is equipped with RJ45 cable error checking functionality, which is essential for maintaining reliable network connections. This feature helps identify common wiring faults such as open circuits, short circuits, crossed pairs, and miswired connections. By quickly detecting these issues, technicians can prevent network downtime, packet loss, and unstable connections. The error-checking process is straightforward and does not require advanced technical knowledge, making it accessible for beginners while still meeting professional standards. This diagnostic capability is particularly useful during new network installations, cable upgrades, or routine maintenance checks. It ensures that Ethernet cables are terminated correctly and conform to standard wiring schemes, which is critical for achieving optimal network performance.

Low Voltage Alarm and Electrical Safety Features

Safety is an important consideration when working with cables and wiring, and the NOYAFA NF-801R addresses this through its built-in low voltage alarm. This feature alerts users when voltage is detected in a line, helping to prevent accidental contact with live wires. Although the device is intended for low-voltage applications, the alarm provides an additional layer of protection and awareness. This is especially valuable when tracing cables in mixed environments where data cables and electrical wires may run close together. The low voltage alarm reduces the risk of equipment damage and personal injury, making the NF-801R a safer choice for technicians who frequently work in unfamiliar or complex wiring systems.

DC Level Testing and Line Status Identification

The DC level testing function of the NOYAFA NF-801R allows users to measure and identify the presence of direct current voltage in cables. This capability is useful for diagnosing telephone lines, control circuits, and certain network components that rely on DC power. By identifying voltage levels, technicians can determine whether a line is active, inactive, or experiencing abnormal conditions. This information helps in pinpointing faults more efficiently and avoiding unnecessary cable replacements. DC level testing also assists in verifying proper power delivery to connected devices, ensuring that systems operate as intended. The inclusion of this feature further enhances the NF-801R ’s role as a multi-purpose diagnostic tool.

Adjustable Volume Control and Signal Sensitivity

The volume adjusting feature of the NOYAFA NF-801R provides precise control over signal detection sensitivity. This is particularly important in environments with multiple cables running close together, where signal interference may occur. By adjusting the volume, users can fine-tune the receiver to focus on the target cable and reduce background noise. This improves accuracy during cable tracing and minimizes the risk of misidentifying cables. The ability to customize sensitivity makes the NF-801R adaptable to a wide range of working conditions, from quiet office spaces to noisy industrial settings. Combined with the earphone jack, volume control ensures clear and reliable signal detection at all times.

Earphone Jack and Noise-Resistant Operation

The inclusion of an earphone jack significantly enhances the practicality of the NOYAFA NF-801R . In busy data centers, construction sites, or industrial environments, ambient noise can make it difficult to hear tracing signals through the built-in speaker alone. By connecting earphones or headphones, users can isolate the signal sound and work more efficiently. This feature is especially beneficial when tracing cables over long distances or through thick walls where signal strength may be lower. Noise-resistant operation improves productivity and reduces errors, allowing technicians to complete tasks faster and with greater confidence.

Integrated Spotlight and Worksite Convenience

The built-in spotlight is a simple yet highly effective feature of the NOYAFA NF-801R . It provides illumination in dark or confined spaces, eliminating the need for a separate flashlight. This is particularly useful when working inside server racks, ceiling cavities, or under desks where lighting is limited. The spotlight improves visibility and helps users identify cable labels, ports, and connectors more easily. By combining lighting and diagnostic functions in one device, the NF-801R enhances convenience and reduces the number of tools technicians need to carry. This thoughtful integration reflects the practical design philosophy behind the product.

Applications, Use Cases, and Overall Value

The NOYAFA NF-801R Networking Wire Tracker is suitable for a wide range of applications, including LAN network installation, telephone system maintenance, security system wiring, and basic electrical troubleshooting. It is commonly used by IT technicians, network engineers, electricians, CCTV installers, and maintenance personnel. Its ability to trace cables, detect errors, test DC levels, and provide safety alerts makes it a comprehensive solution for everyday diagnostic tasks. The combination of functionality, ease of use, and durable design offers excellent value for both professionals and small businesses. Whether used for routine maintenance or complex troubleshooting, the NF-801R delivers reliable performance and helps reduce downtime, making it a valuable addition to any technical toolkit.
